Quick Start

Path	Who operates the Console	Start here
Telovix self-hosted	You	Telovix self-hosted Quick Start
Telovix Cloud	Telovix	Telovix Cloud Quick Start

Both paths begin with a subscription from the Telovix Portal. After payment is confirmed, you choose whether to deploy the Console yourself or have Telovix operate it for you. The sensor is always deployed by you on your own nodes, regardless of which path you take.

---

Telovix self-hosted Quick Start

Outcome: a running Console with databases configured, one enrolled Sensor sending heartbeats, and a real detection event visible in the Console - triggered by you, within the first session.

Estimated time: 20 to 30 minutes depending on database provisioning.

Prerequisites

Requirement	Minimum	Notes
Portal account	Active subscription	Sign up at portal.telovix.com
Console host	Linux, 2 CPU, 2 GB RAM	Dedicated VM or bare metal recommended
PostgreSQL	15 or later	Must be reachable from the Console host
ClickHouse	24.8 or later	Must be reachable from the Console host
Sensor host	Linux, kernel 5.8+, BTF enabled	Any node you want to protect
CPU architecture	x86_64 or aarch64	Both Console and Sensor binaries available for each
Network	Sensor can reach Console on port 15483 (Telovix self-hosted default)	Outbound only from the Sensor

Step 1: Get the Console binary and license bundle from the Portal

Log in to portal.telovix.com. If you do not have a workspace yet, sign up first. The signup collects your name, email, company name, plan, and billing period, then redirects to Stripe Checkout. Your workspace is activated after Stripe confirms payment via a webhook, not from the redirect alone.

Once your workspace is active:

1. Go to Getting Started and create a Telovix self-hosted deployment.
2. On the deployment page, click Issue License to generate a signed license bundle. Download the .json file.
3. Go to Downloads and download the Console binary for your architecture (amd64 or arm64).

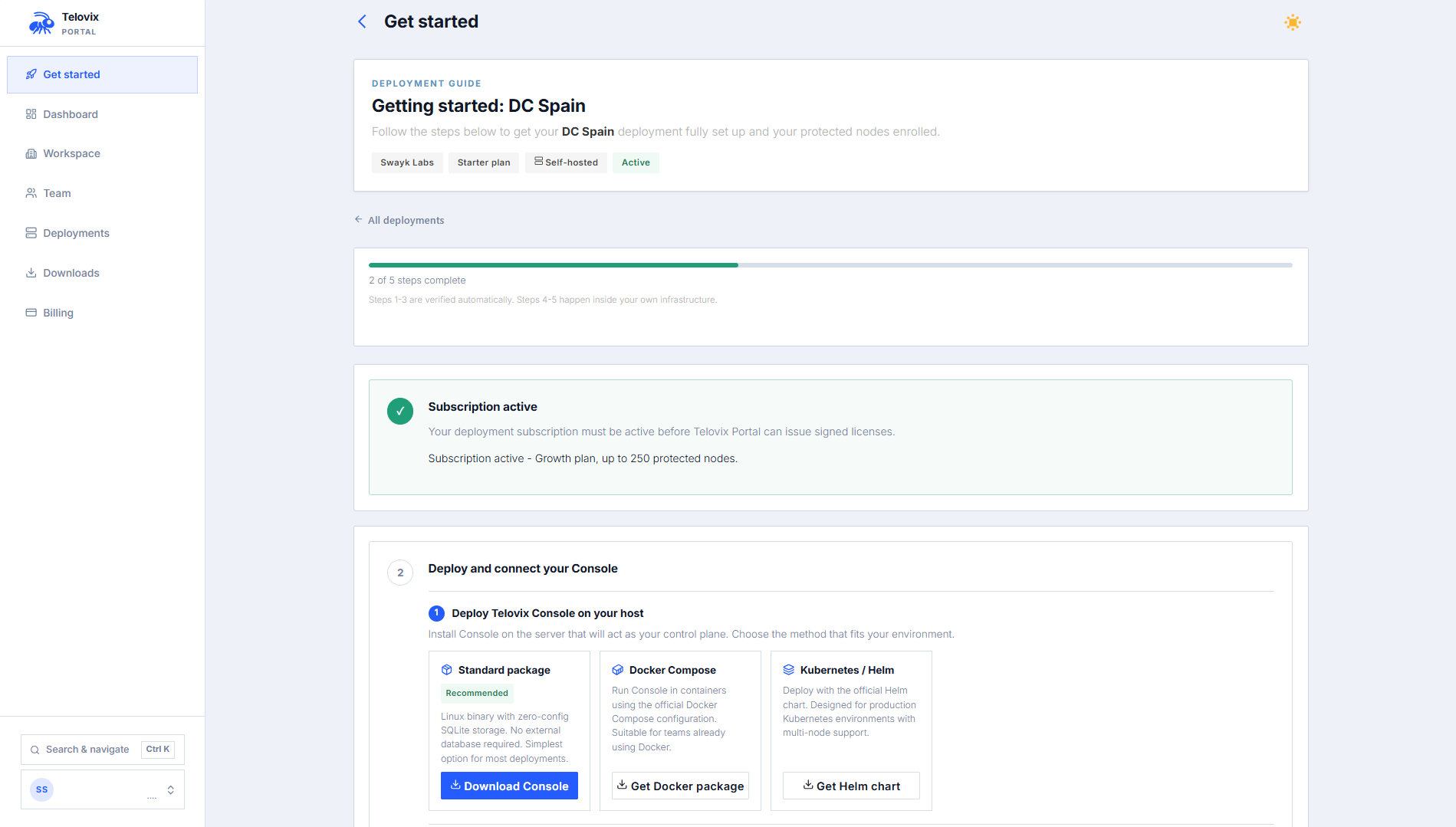

Portal Getting Started - self-hosted deployment with Issue License and Download buttons Click to enlarge

Step 2: Start PostgreSQL and ClickHouse

The Console will not complete startup without both databases reachable.

PostgreSQL: quick start with Docker

docker run -d --name telovix-pg \
  -e POSTGRES_DB=telovix_console \
  -e POSTGRES_USER=telovix_console \
  -e POSTGRES_PASSWORD=change-me \
  -p 5432:5432 \
  -v pg-data:/var/lib/postgresql \
  postgres:18-bookworm

Or create a database on an existing instance:

createuser --pwprompt telovix_console
createdb -O telovix_console telovix_console

ClickHouse: quick start with Docker

docker run -d --name telovix-ch \
  -e CLICKHOUSE_DB=telovix_console \
  -e CLICKHOUSE_USER=telovix_console \
  -e CLICKHOUSE_PASSWORD=change-me \
  -p 8123:8123 \
  -v ch-data:/var/lib/clickhouse \
  clickhouse/clickhouse-server:24.8-alpine

Verify both are reachable before continuing:

pg_isready -h 127.0.0.1 -p 5432
curl -sf http://127.0.0.1:8123/ping && echo "ClickHouse OK"

Step 3: Install and start the Console

Install the binary

sudo install -m 0755 telovix-console-amd64 /usr/local/bin/telovix-console

Create a service account and directories

sudo useradd --system --no-create-home --shell /usr/sbin/nologin telovix-console 2>/dev/null || true
sudo install -d -o telovix-console -g telovix-console -m 0750 \
  /etc/telovix-console \
  /var/lib/telovix-console

Create the service directories

sudo install -d -o telovix-console -g telovix-console -m 0750 \
  /etc/telovix-console \
  /var/lib/telovix-console

The Console reads its configuration from a file written by the setup wizard on first run. No manual configuration file is needed before starting the Console for the first time.

Register the systemd unit

Create /etc/systemd/system/telovix-console.service:

[Unit]
Description=Telovix Console
After=network-online.target

[Service]
Type=simple
User=telovix-console
Group=telovix-console
EnvironmentFile=/etc/telovix-console/env
WorkingDirectory=/var/lib/telovix-console
ExecStart=/usr/local/bin/telovix-console
Restart=on-failure
RestartSec=10
KillMode=process
TimeoutStopSec=15

[Install]
WantedBy=multi-user.target

sudo systemctl daemon-reload
sudo systemctl enable --now telovix-console
sudo journalctl -u telovix-console -f

The Console starts in first-run mode and serves only the setup wizard until it is completed.

Step 4: Complete the setup wizard

Open https://console.example.com:15483 (Telovix self-hosted default) in a browser. The wizard launches automatically on first startup before any configuration exists and guides you through license import, storage configuration, and first-account creation.

4a: Import the license

Upload the signed license bundle (.json) you downloaded from the Portal. The Console validates the Ed25519 signature offline. No network connection to Telovix services is needed after import.

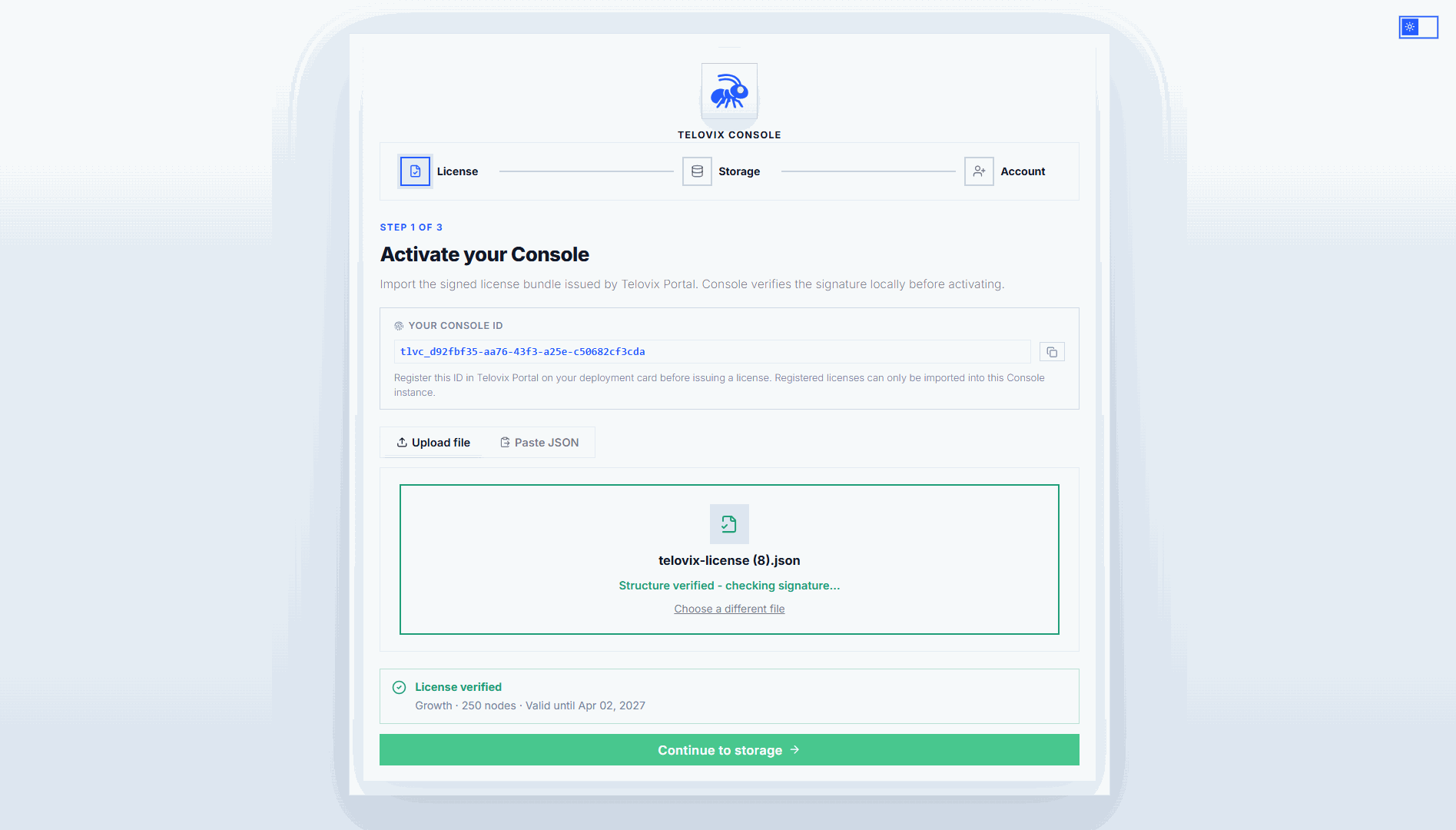

Setup wizard license import step showing the file upload field and a successful validation state. Click to enlarge

4b: Configure storage

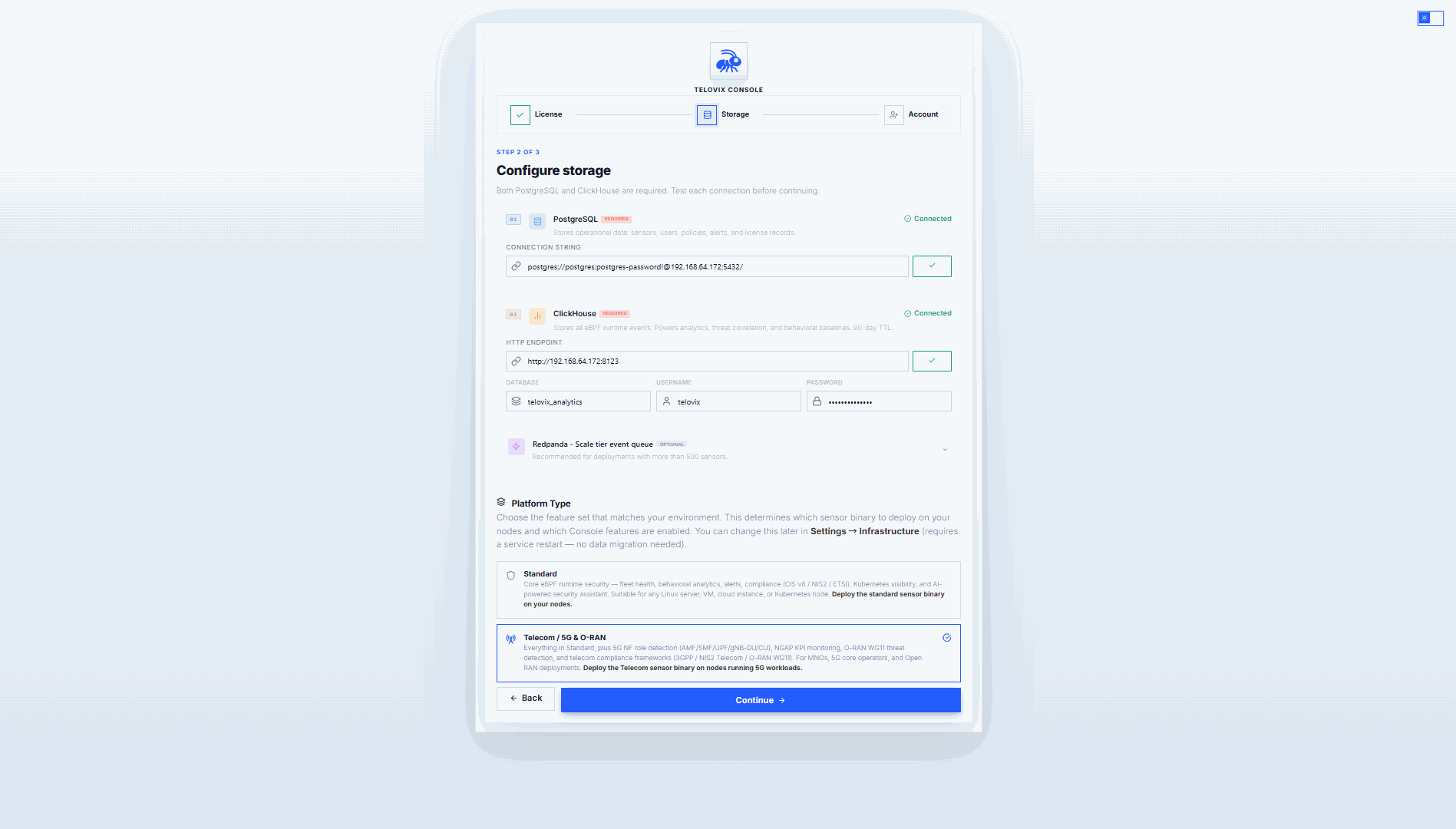

Setup wizard storage step showing the PostgreSQL URL field, ClickHouse URL field, platform vertical selector (Standard / Telecom), and optional Redpanda broker field. Click to enlarge

Field	Example value	Required
PostgreSQL URL	postgres://telovix_console:change-me@127.0.0.1:5432/telovix_console	Yes
ClickHouse URL	http://127.0.0.1:8123	Yes
Platform vertical	standard or telecom	Yes
Redpanda broker	redpanda-host:9092	No. Scale tier only, recommended above 1,500 nodes.

The wizard tests each connection before you can continue. When you complete the final account step, the Console applies PostgreSQL migrations and the ClickHouse schema. Storage cannot be changed after the first admin account is created.

Choose the platform vertical:

• Standard: core eBPF security. The correct choice for most deployments.
• Telecom: adds 5G Core and O-RAN NF monitoring, NGAP KPIs, and the Telco section in the UI. Use this if your nodes run network functions such as AMF, SMF, UPF, O-DU, or O-CU, and if you are deploying the telecom sensor flavor.

4c: Create the first admin account

Enter an email address, a display name, and a password. Password requirements: minimum 12 characters, at least one uppercase letter, one lowercase letter, one number, and one symbol. No spaces or tabs allowed.

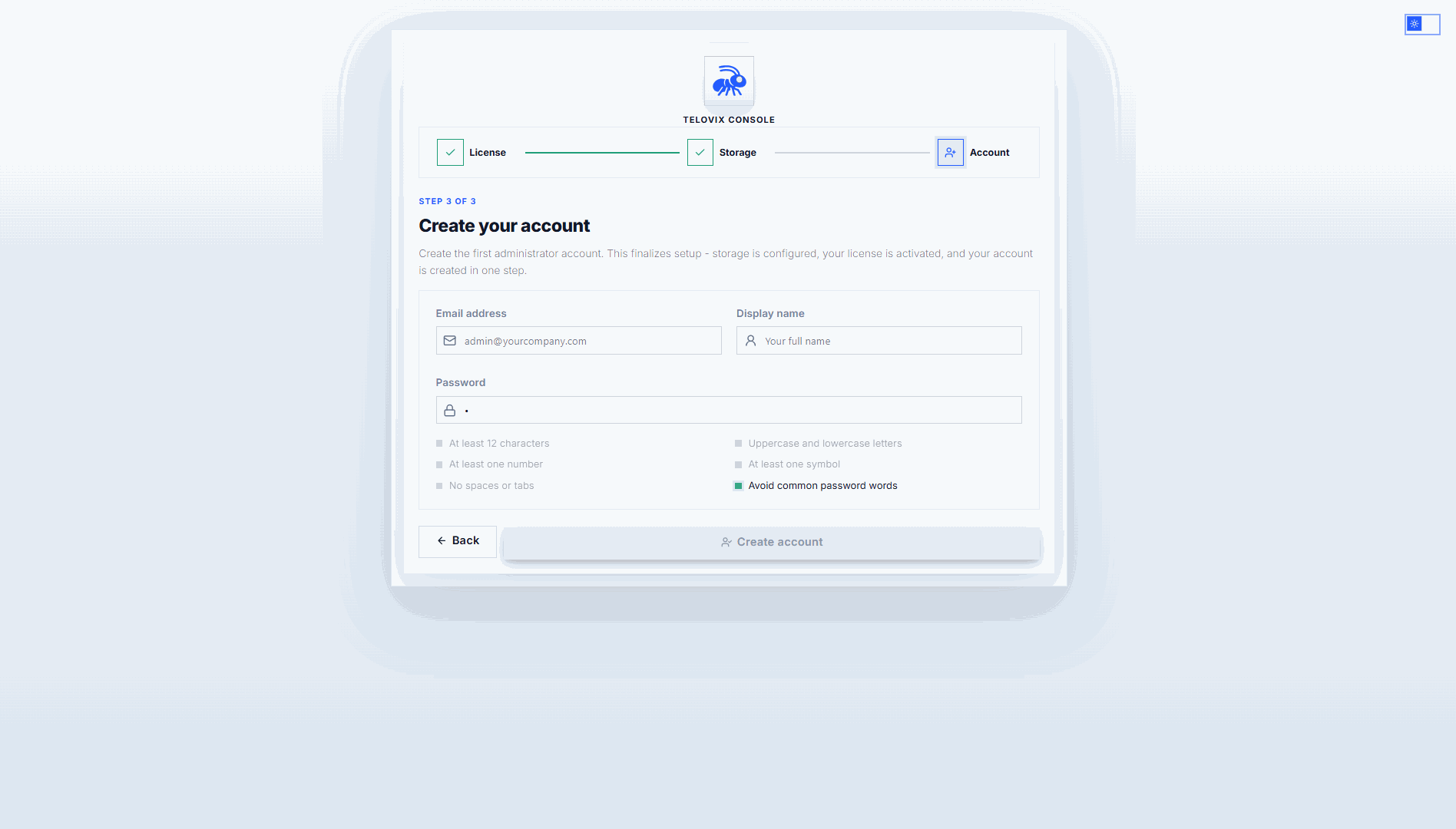

Setup wizard admin creation step showing the email, display name, and password fields with strength indicators. Click to enlarge

After the admin account is created, the wizard saves the configuration, activates the database connections and event sink in memory, and starts all background tasks. The Console redirects you to the login page.

Step 5: Enroll your first Sensor

Log in with the admin credentials you just created.

Generate an enrollment token

Go to Sensors and click Deploy Sensor. Select VM / Bare Metal, enter a node name, and select a node role. The wizard generates a ready-to-run install command with an enrollment token embedded. The token is valid for 15 minutes.

Deploy Sensor wizard showing the node name field, role selector, flavor selector (standard or telecom), and the generated one-line install command. Click to enlarge

Available node roles:

Role	Use for
generic_linux	Any standard Linux host (default)
amf	5G Core Access and Mobility Management Function
smf	5G Core Session Management Function
upf	5G Core User Plane Function
o_du	O-RAN Distributed Unit
o_ru	O-RAN Radio Unit
o_cu_cp	O-RAN Central Unit Control Plane
o_cu_up	O-RAN Central Unit User Plane
near_rt_ric	O-RAN near-RT RAN Intelligent Controller

Run the install command on the target node as root

Copy the command shown in the wizard and run it as root on the target node. The command embeds the enrollment token, Console URL, node name, node role, and tags. It expires after 15 minutes.

The install script does the following:

1. Downloads the Sensor binary for the detected architecture (x86_64 or aarch64).
2. Downloads the Console bootstrap CA certificate if the Console uses a self-signed or private CA.
3. Writes the sensor configuration to /etc/telovix-sensor/ (mode 600).
4. Installs and starts the telovix-sensor systemd service.

::: note The Sensor runs as root. eBPF kernel tracing, BPF filesystem access, and memory locking all require full root capabilities. The install script exits immediately if systemctl is not found. For Kubernetes deployments use the Helm chart instead. :::

Check the sensor host

systemctl status telovix-sensor
journalctl -u telovix-sensor -n 30 --no-pager

Look for lines containing enrolled successfully and heartbeat sent.

Confirm in the Console

The sensor appears in Sensors within one heartbeat cycle (up to 15 seconds). Trust state should show healthy.

Fleet view showing the newly enrolled sensor with healthy trust state, first heartbeat timestamp, node role, and flavor label. Click to enlarge

Step 6: Trigger your first detection

This step proves that telemetry is flowing end-to-end from the sensor to the Console. Run a command on the enrolled node that the sensor is monitoring, then watch the event appear in real time.

On the sensor host, run:

cat /etc/shadow

This accesses /etc/shadow, a sensitive credential file. The sensor captures the file_open event at the kernel level and delivers it to the Console within one heartbeat cycle (up to 15 seconds).

In the Console:

1. Click the sensor name in Sensors to open its detail page.
2. Go to Recent Events. Within 15 seconds of running the command you should see a file_open event with:
   • Process: cat
   • File: /etc/shadow
   • Severity: info

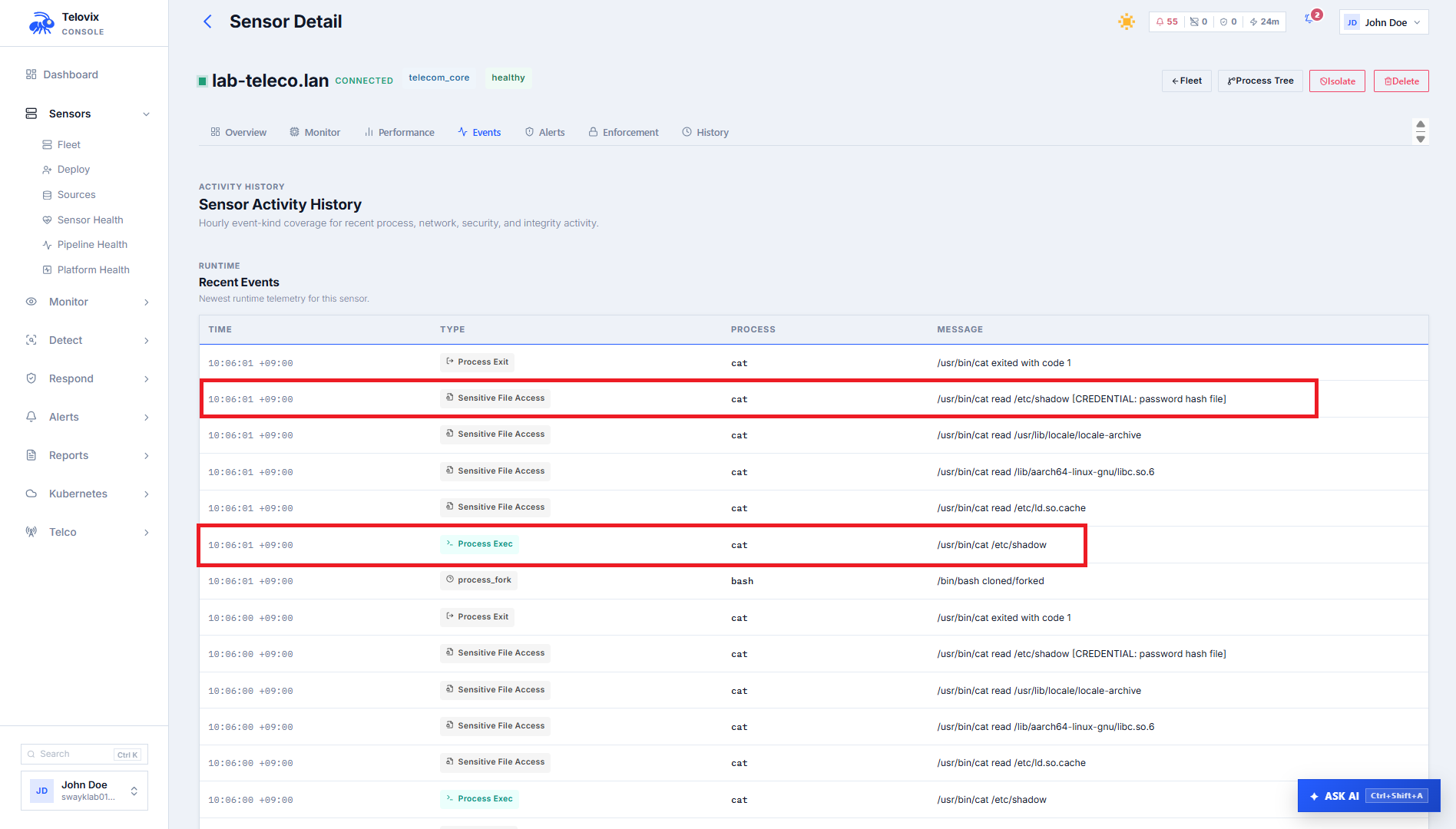

Sensor detail page showing a `file_open` event for `/etc/shadow` under Recent Events, with process name, file path, and timestamp visible. Click to enlarge

If you do not see the event after 30 seconds, try a second trigger command:

# This generates a privilege_change event
sudo -i whoami

If the event list is still empty after another 30 seconds, check the sensor host:

journalctl -u telovix-sensor -n 50 --no-pager | grep -E "heartbeat|error|failed|enroll"

Look for lines containing heartbeat sent. If you see heartbeat errors, check:

• The sensor can reach the Console: curl -k https://console.example.com:15483/healthz (Telovix self-hosted only)
• System clocks on both hosts agree within a few seconds (mTLS rejects large clock skew)
• No firewall or transparent proxy is blocking port 15483 (Telovix self-hosted default)
• The Console itself is healthy: curl -sf http://127.0.0.1:8123/ping from the Console host confirms ClickHouse is reachable

---

Telovix Cloud Quick Start

Outcome: a Telovix Cloud Console URL you can log in to immediately, with a real detection event visible after enrolling your first sensor.

Telovix provisions and operates the Console, PostgreSQL, and ClickHouse. You never see or manage the database layer.

Step 1: Create a Portal account

Go to portal.telovix.com and sign up. The signup flow asks for your name, email, company name, a plan, and a billing period. You are then redirected to Stripe Checkout.

Available plans:

Plan	Max protected nodes	Support tier
Trial	5	Standard
Starter	100	Standard
Growth	250	Priority
Scale	500	Professional

Your workspace is activated after Stripe confirms payment via a verified webhook. The page polls for activation and redirects you to the Portal automatically once it is complete. Workspace activation never happens from the payment redirect alone.

::: note Trial plan Trial workspaces include one pre-provisioned Telovix Cloud Console. You can proceed to Step 2 immediately after account creation. Trials do not require payment. :::

Step 2: Create a Telovix Cloud deployment and request provisioning

In the Portal, go to Getting Started or Deployments and create a new deployment. Choose Telovix Cloud as the deployment mode.

Once the deployment is created, click Provision Console. The Portal prompts you for:

• Admin email: the email for the first Console operator account
• Admin display name: the name shown in the Console UI
• Admin password: minimum 12 characters, at least one uppercase letter, one lowercase letter, one number, one symbol, no spaces

📸 Screenshot: portal-provision-form Portal provisioning form showing the admin email, display name, and password fields with the password strength checklist.

After you submit, the deployment moves to Queued status. Telovix creates the infrastructure and injects your license automatically. You do not need to import a license file.

The Portal shows provisioning progress in real time:

Status	Meaning
Queued	Your request has been received
Provisioning	Infrastructure is being created
Ready	Your Console URL is available

Step 3: Log in to your Console

Once the status shows Ready, the Console URL appears in the Portal. Open it in your browser and log in with the admin credentials you provided in Step 2. No setup wizard runs in Telovix Cloud mode. The Console is immediately operational.

📸 Screenshot: portal-console-ready Portal deployment card showing Ready status with the Console URL and a direct login button.

Step 4: Enroll your first Sensor and trigger a detection

Enroll the sensor using the same process as the Telovix self-hosted path. Log in to your Console, go to Sensors, click Deploy Sensor, and follow Step 5 of the Telovix self-hosted guide above.

The Console URL provided by Telovix may use port 443 (Telovix Cloud) rather than 15483 (Telovix self-hosted default). Use whatever URL appears in the Portal and in the generated install command. Do not manually append :15483.

Trigger your first detection by running this on the enrolled sensor host:

cat /etc/shadow

Within 15 seconds, a file_open event for /etc/shadow appears under Recent Events in Sensors > [sensor]. This confirms the full telemetry path is working: sensor capture, mTLS delivery, and ClickHouse storage. See Step 6 of the Telovix self-hosted guide for troubleshooting if the event does not appear.

---

What happens next

Every node starts in observe-only mode. No enforcement runs until you explicitly enable it.

Recommended next steps in order:

1. Review the Pilot Checklist before enrolling more nodes.
2. Read Sensor Health and Heartbeat to understand the trust states and the staleness window.
3. Assign a policy pack from Sensors > [sensor] > Assign Pack to begin structured detection coverage.
4. Let the behavioral baselines build for at least 14 days before reviewing anomaly scores.
5. After validating baseline behavior, move selected nodes to enforcement through Runtime Blocks.

---

Troubleshooting

Browser shows setup wizard on every restart (Telovix self-hosted only)

The Console configuration was not saved to a persistent location. Check that WorkingDirectory in the systemd unit points to a writable directory owned by the telovix-console service account.

Sensor shows stale in fleet

Heartbeats stopped reaching the Console. Run journalctl -u telovix-sensor -f on the sensor host to see whether the sensor is running and whether heartbeat attempts are producing errors.

Sensor shows enrollment_failed

The enrollment token expired before the install completed, or the Console URL used during install was incorrect. Regenerate a fresh token from Sensors > Deploy Sensor and verify the Console URL is correct before running the install command again.

Sensor shows revoked

The Console revoked this sensor identity. A plain enrollment token is not sufficient to reconnect a revoked sensor. Generate a re-enrollment token from Sensors > [sensor] > Actions > Generate Re-enrollment Token, which is specifically issued for this case.

No events in Console

ClickHouse is unreachable from the Console host. Run curl -sf http://<ch-host>:8123/ping from the Console host to confirm connectivity. Restore ClickHouse reachability and events will resume flowing.

Install script exits: systemctl not found

The target host does not have systemd. The install script requires systemd to register the sensor service. Use the Kubernetes Helm chart for hosts without systemd.

Install script exits: architecture not supported

The detected CPU architecture is not x86_64 or aarch64. Only amd64 and arm64 sensor binaries are provided. The install script will not continue on unsupported architectures.

Portal deployment stays at Queued

Provisioning has not yet started or is delayed. Wait a few minutes and refresh the page. If the status does not advance to Provisioning, contact support with your deployment ID.

License import fails in wizard

The license bundle was issued for a different workspace. Re-issue the license from the Portal for this specific deployment, then import the newly downloaded .json file.
